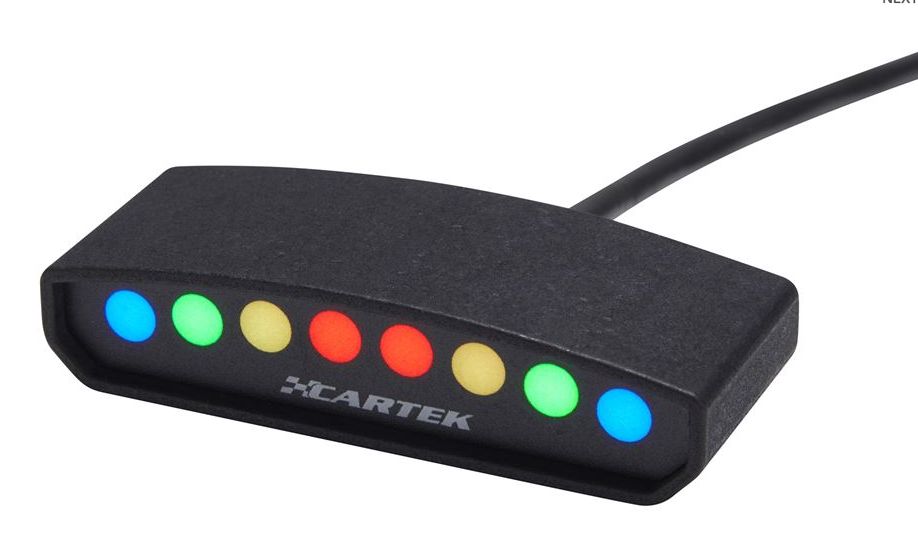

CARTEK OBD Shift Light / Programmable Shift Warning Light

Precise shift indication for motorsport and track use

The CARTEK OBD Shift Light is a compact and fully programmable shift warning light designed for motorsport, trackday and performance vehicles equipped with a compatible OBD2 connection. It provides the driver with a clear visual indication of the optimum time to change gear, helping to maintain focus on the track and make the most of the engine's available performance.

Installation is quick and straightforward. The supplied 1.5 m OBD2 cable connects the Shift Light directly to the vehicle. With compatible vehicles, no additional RPM signal wiring is required.

The lower and upper RPM settings can be configured either with the engine running or with the engine switched off. When setting the unit with the engine running, the engine only needs to be revved to approximately 50% of maximum RPM. Alternatively, the required RPM values can be entered manually using the push button located on the rear of the Shift Light.

Fully programmable LED shift indication

The CARTEK Shift Light can be adapted to the driver's individual preferences and the conditions on track. Daytime and nighttime LED brightness can be configured separately, while six different shift light patterns are available.

The LED sequence can be configured as either a linear or converging display, allowing the driver to choose the indication that is easiest to recognise during high-speed driving.

Additional alarm function

The Shift Light also features an integrated alarm function. When connected to a compatible sensor, data logging system or dashboard alarm output, it can be used to alert the driver to potential engine problems such as high engine temperature or low oil pressure.

This makes the CARTEK Shift Light more than just a conventional RPM indicator: it can also provide an additional visual warning function for motorsport applications.

OBD2 protocol compatibility

The CARTEK OBD Shift Light is designed for vehicles equipped with an OBD2 connection. Before purchasing, please check that the vehicle uses one of the supported OBD2 protocols:

• SAE J1850-PWM
• SAE J1939
• ISO 9141
• ISO 14230
• ISO 15765-4

Please verify OBD2 compatibility with your vehicle before ordering.

Key features

• Fully programmable OBD2 Shift Light
• Quick and simple installation
• No additional RPM wiring required on compatible OBD2 vehicles
• Individually adjustable lower and upper RPM limits
• Setup with or without the engine running
• Manual RPM input via rear push button
• Six different shift light patterns
• Linear or converging LED display
• Adjustable daytime and nighttime brightness
• Integrated alarm function
• 1.5 m OBD2 cable included
• Compact, robust housing
• Ideal for racing, motorsport, trackdays and performance vehicles

Technical specifications

• Dimensions: 75 × 18 × 29 mm
• Weight: 55 g
• Operating voltage: 7–18 V
• Operating temperature: -10 °C to +85 °C
• Storage temperature: -40 °C to +125 °C
• Housing: PA 2200 nylon, fully potted
• Protection rating: IP64
• Mounting: 2 × M3 screws underneath the Shift Light or 2 × M3 screws on the rear
• Cable: 1.5 m OBD2 cable included
• Programming: Fully programmable

Built for racing and trackdays

When driving on track, clear and instantly recognisable information is essential. The CARTEK OBD Shift Light provides a bright visual indication of the programmed shift point and helps the driver keep engine speed under control without unnecessary distraction.

With its straightforward OBD2 installation, programmable RPM settings, selectable LED patterns and additional alarm function, the CARTEK Shift Light is an excellent solution for race cars, track tools, performance vehicles and motorsport builds.

Please check your vehicle's compatibility with the supported OBD2 protocols before ordering.
