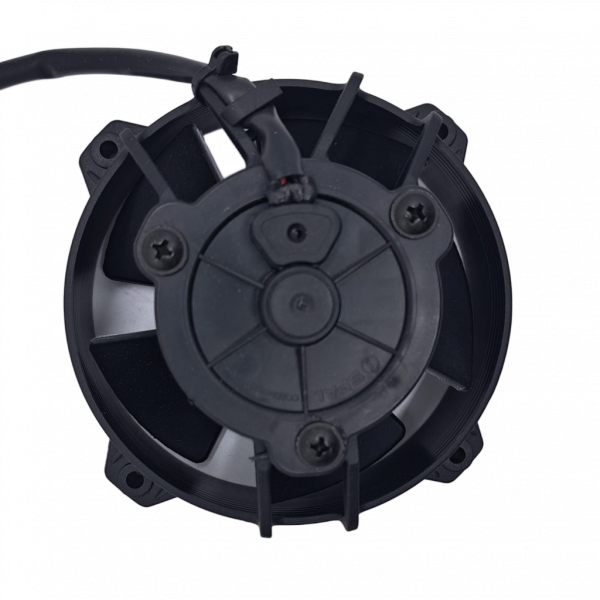

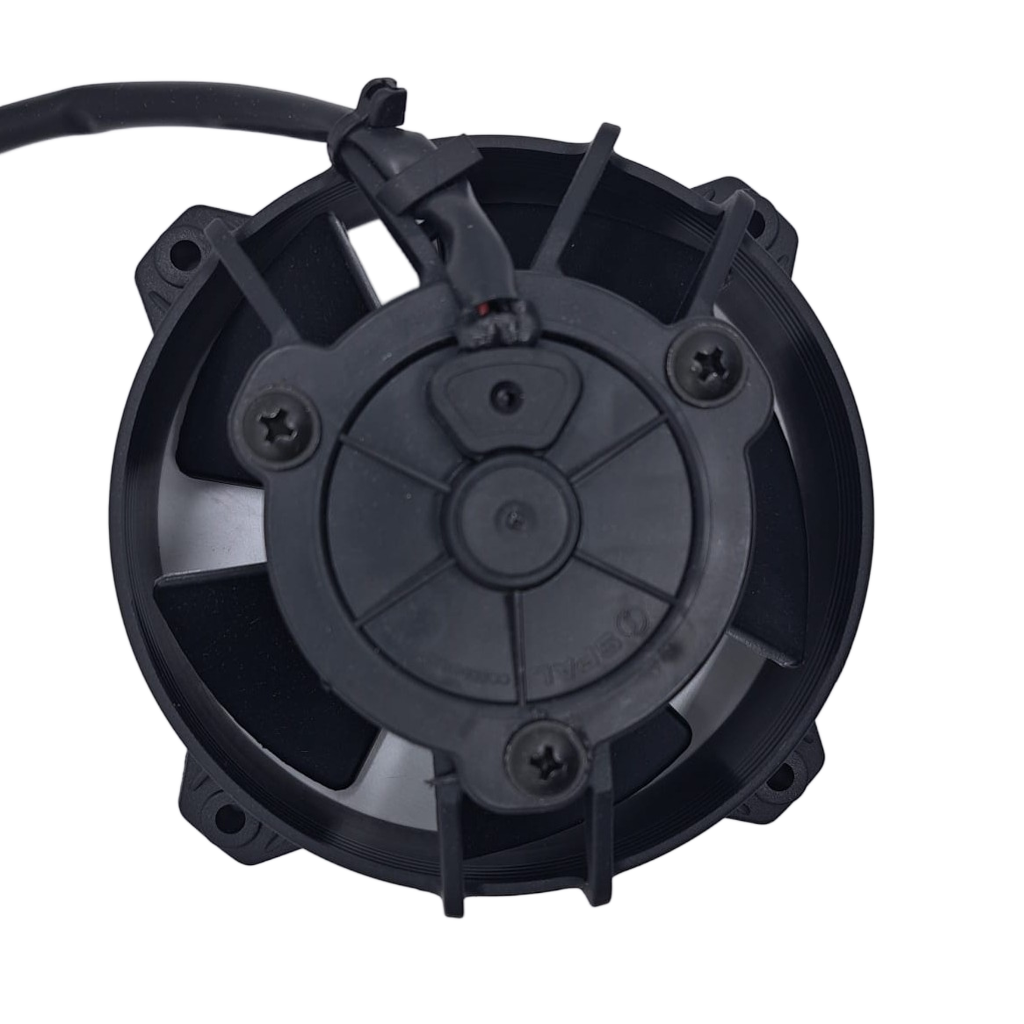

Spal Fan, 109mm, 250 / 210m³/h

The genuine SPAL 109 mm electric cooling fan is designed for motorsport and high-performance automotive applications where efficient cooling is essential.

Thanks to its compact 48 mm installation depth, this 12V axial fan fits perfectly into confined engine bays while delivering excellent airflow and long-lasting reliability.

Available in two versions:

• intake version (mounted behind the radiator) – Airflow: 250 m³/h

• blowing version (mounted in front of the radiator) – Airflow: 210 m³/h

Technical specifications:

• Mounting diameter: 109 mm

• Blade diameter: 96 mm

• Installation depth: 48 mm

• Voltage: 12V

• Puller airflow: 250 m³/h

• Pusher airflow: 210 m³/h

• Current draw (Puller): 3.0 A

• Current draw (Pusher): 2.4 A

• Straight blades

Key Features:

• Genuine SPAL quality

• Compact design

• High cooling efficiency

• Ideal for motorsport and performance vehicles

• Reliable continuous operation

• Low power consumption

• Easy installation

Suitable as an auxiliary cooling fan or replacement radiator fan for water radiators, oil coolers and heat exchangers.
